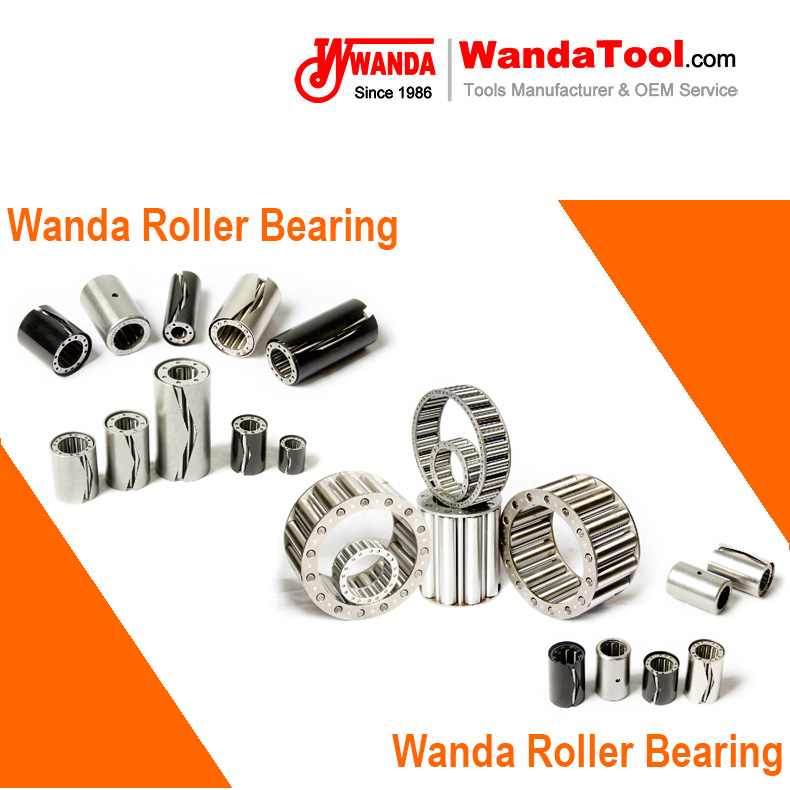

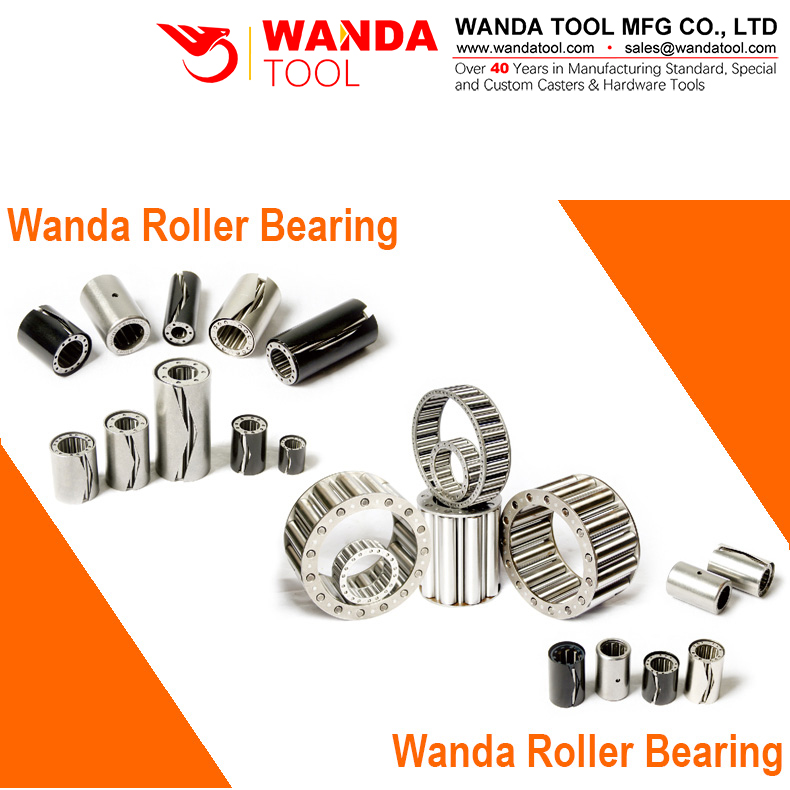

滾針軸承英文名稱Roller bearing 或Needle bearing,是一種帶圓柱滾子的滾子軸承,滾子既細又長,這種滾子直接較小于長度稱為滾針,所以稱為 滾針軸承。
改進的滾子/滾道形狀防止應力峰值,并有效延長軸承的使用壽命。
WandaTool提供不同設計、不同系列和多種尺寸的滾針軸承,以滿足各種工作條件和應用。
滾針軸承的特點滾針軸承裝有的細而長的滾子,滾子的長度遠大于滾子的直徑,盡管具有較小的截面,軸承仍具有較高的負荷承受能力,因此徑向結構緊湊,其內徑尺寸和載荷能力與其它類型軸承相同時,外徑*小,特別適用于徑向安裝尺寸受限制的支承結構。 滾針軸承按其結構可分為以下幾類1- 封閉式?jīng)_壓外圈滾針軸承 滾針軸承選用注意事項根據使用場合不同,選用滾針軸承是可選用無內圈的軸承或滾針和保持架組件,此時與軸承相配的軸頸表面和外殼孔表面直接作為軸承的內、外滾動表面,為保證載荷能力和運轉性能與有套圈軸承相同,軸或外殼孔滾道表面的硬度,加工精度和表面質量應與軸承套圈的滾道相仿。 | 滾針軸承概述圖滾針軸承詞條統計滾針軸承 推力滾針軸承 單向滾針軸承 單向滾針軸承 滾針軸承型號 滾針軸承型號 滾針軸承配件 滾針軸承標準 滾針軸承廠家 滾針軸承百科 |
配開口外殼圓柱滾針軸承 |
內徑 | 外徑 | 厚度 | 額定動載 | 額定靜載 | 產品凈重 | 標準說明 | 產品編號 | ||||
mm | inch | mm | inch | mm | inch | Cr (KN) | Cor (KN) | kg | lbs | ||
9.525 | 20.62 | 25.4 | WDBRG-SRB061316 | ||||||||
9.525 | 20.62 | 31.75 | WDBRG-SRB061320 | ||||||||
9.525 | 20.62 | 38.1 | WDBRG-SRB061324 | ||||||||
9.525 | 20.62 | 44.45 | WDBRG-SRB061328 | ||||||||
9.525 | 20.62 | 50.8 | WDBRG-SRB061332 | ||||||||
11.11 | 20.62 | 25.4 | WDBRG-SRB071316 | ||||||||
11.11 | 20.62 | 31.75 | WDBRG-SRB071320 | ||||||||
11.11 | 20.62 | 38.1 | WDBRG-SRB071324 | ||||||||
12.7 | 23.8 | 19.05 | WDBRG-SRB081512 | ||||||||
12.7 | 23.8 | 25.4 | WDBRG-SRB081516 | ||||||||
12.7 | 23.8 | 28.575 | WDBRG-SRB081518 | ||||||||
12.7 | 23.8 | 31.75 | WDBRG-SRB081520 | ||||||||
12.7 | 23.8 | 34.925 | WDBRG-SRB081522 | ||||||||
12.7 | 23.8 | 38.1 | WDBRG-SRB081524 | ||||||||
12.7 | 23.8 | 44.45 | WDBRG-SRB081528 | ||||||||
12.7 | 23.8 | 50.8 | WDBRG-SRB081532 | ||||||||
12.7 | 26.988 | 19.05 | WDBRG-SRB081712 | ||||||||
12.7 | 26.988 | 25.4 | WDBRG-SRB081716 | ||||||||
12.7 | 26.988 | 28.575 | WDBRG-SRB081718 | ||||||||
12.7 | 26.988 | 31.75 | WDBRG-SRB081720 | ||||||||
12.7 | 26.988 | 38.1 | WDBRG-SRB081724 | ||||||||
12.7 | 26.988 | 44.5 | WDBRG-SRB081728 | ||||||||
12.7 | 26.988 | 50.8 | WDBRG-SRB081732 | ||||||||
12.7 | 26.988 | 63.5 | WDBRG-SRB081740 | ||||||||
12.7 | 30.16 | 25.4 | WDBRG-SRB081916 | ||||||||
12.7 | 30.16 | 31.75 | WDBRG-SRB081920 | ||||||||
12.7 | 30.16 | 34.925 | WDBRG-SRB081922 | ||||||||
12.7 | 30.16 | 38.1 | WDBRG-SRB081924 | ||||||||
12.7 | 30.16 | 44.45 | WDBRG-SRB081928 | ||||||||
12.7 | 30.16 | 47.6 | WDBRG-SRB081930 | ||||||||
12.7 | 30.16 | 50.8 | WDBRG-SRB081932 | ||||||||
12.7 | 30.16 | 57.15 | WDBRG-SRB081936 | ||||||||
12.7 | 30.16 | 63.5 | WDBRG-SRB081940 | ||||||||
12.7 | 30.16 | 76.2 | WDBRG-SRB081948 | ||||||||
14.2875 | 25.4 | 25.4 | WDBRG-SRB091616 | ||||||||
14.2875 | 25.4 | 31.75 | WDBRG-SRB091620 | ||||||||
14.2875 | 25.4 | 38.1 | WDBRG-SRB091624 | ||||||||
14.2875 | 28.575 | 25.4 | WDBRG-SRB091816 | ||||||||
14.2875 | 28.575 | 31.75 | WDBRG-SRB091820 | ||||||||
14.2875 | 28.575 | 38.1 | WDBRG-SRB091824 | ||||||||
14.2875 | 28.575 | 44.45 | WDBRG-SRB091828 | ||||||||
14.2875 | 28.575 | 50.8 | WDBRG-SRB091832 | ||||||||
14.2875 | 28.575 | 63.5 | WDBRG-SRB091840 | ||||||||
15.875 | 25.4 | 25.4 | WDBRG-SRB101616 | ||||||||
15.875 | 25.4 | 31.75 | WDBRG-SRB101620 | ||||||||
15.875 | 25.4 | 38. | WDBRG-SRB101624 | ||||||||
15.875 | 26.988 | 19.05 | WDBRG-SRB101712 | ||||||||
15.875 | 26.988 | 25.4 | WDBRG-SRB101716 | ||||||||
15.875 | 26.988 | 28.575 | WDBRG-SRB101718 | ||||||||
15.875 | 26.988 | 31.75 | WDBRG-SRB101720 | ||||||||
15.875 | 26.988 | 38.1 | WDBRG-SRB101724 | ||||||||
15.875 | 26.988 | 44.45 | WDBRG-SRB101728 | ||||||||
15.875 | 26.988 | 50.8 | WDBRG-SRB101732 | ||||||||
15.875 | 26.988 | 63.5 | WDBRG-SRB101740 | ||||||||
15.875 | 30.16 | 19.05 | WDBRG-SRB101912 | ||||||||
15.875 | 30.16 | 25.4 | WDBRG-SRB101916 | ||||||||
15.875 | 30.16 | 28.575 | WDBRG-SRB101918 | ||||||||
15.875 | 30.16 | 31.75 | WDBRG-SRB101920 | ||||||||
15.875 | 30.16 | 34.925 | WDBRG-SRB101922 | ||||||||
15.875 | 30.16 | 36.5 | WDBRG-SRB101923 | ||||||||
15.875 | 30.16 | 38.1 | WDBRG-SRB101924 | ||||||||
15.875 | 30.16 | 41.275 | WDBRG-SRB101926 | ||||||||
15.875 | 30.16 | 44.45 | WDBRG-SRB101928 | ||||||||
15.875 | 30.16 | 47.6 | WDBRG-SRB101930 | ||||||||
15.875 | 30.16 | 50.8 | WDBRG-SRB101932 | ||||||||
15.875 | 30.16 | 57.15 | WDBRG-SRB101936 | ||||||||
15.875 | 30.16 | 63.5 | WDBRG-SRB101940 | ||||||||
15.875 | 30.16 | 76.2 | WDBRG-SRB101948 | ||||||||
15.875 | 33.33 | 25.4 | WDBRG-SRB102116 | ||||||||
15.875 | 33.33 | 31.75 | WDBRG-SRB102120 | ||||||||
15.875 | 33.33 | 38.1 | WDBRG-SRB102124 | ||||||||
15.875 | 33.33 | 44.45 | WDBRG-SRB102128 | ||||||||
15.875 | 33.33 | 50.8 | WDBRG-SRB102132 | ||||||||
15.875 | 33.33 | 63.5 | WDBRG-SRB102140 | ||||||||
15.875 | 36.51 | 25.4 | WDBRG-SRB102316 | ||||||||
15.875 | 36.51 | 38.1 | WDBRG-SRB102324 | ||||||||
15.875 | 36.51 | 44.45 | WDBRG-SRB102328 | ||||||||
15.875 | 36.51 | 50.8 | WDBRG-SRB102332 | ||||||||
15.875 | 36.51 | 63.5 | WDBRG-SRB102340 | ||||||||
15.875 | 36.51 | 69.85 | WDBRG-SRB102344 | ||||||||
15.875 | 36.51 | 76.2 | WDBRG-SRB102348 | ||||||||
17.46 | 28.575 | 25.4 | WDBRG-SRB111816 | ||||||||
17.46 | 28.575 | 31.75 | WDBRG-SRB111820 | ||||||||
19.05 | 30.16 | 19.05 | WDBRG-SRB121912 | ||||||||
19.05 | 30.16 | 25.4 | WDBRG-SRB121916 | ||||||||
19.05 | 30.16 | 28.575 | WDBRG-SRB121918 | ||||||||
19.05 | 30.16 | 31.75 | WDBRG-SRB121920 | ||||||||
19.05 | 30.16 | 34.925 | WDBRG-SRB121922 | ||||||||
19.05 | 30.16 | 36.5 | WDBRG-SRB121923 | ||||||||
19.05 | 30.16 | 38.1 | WDBRG-SRB121924 | ||||||||
19.05 | 30.16 | 41.275 | WDBRG-SRB121926 | ||||||||
19.05 | 30.16 | 44.45 | WDBRG-SRB121928 | ||||||||
19.05 | 0.750 | 30.16 | 1.188 | 47.6 | 1.875 | WDBRG-SRB121930 | |||||
19.05 | 30.16 | 50.8 | WDBRG-SRB121932 | ||||||||
19.05 | 30.16 | 57.15 | WDBRG-SRB121936 | ||||||||
19.05 | 30.16 | 63.5 | WDBRG-SRB121940 | ||||||||
19.05 | 30.16 | 76.2 | WDBRG-SRB121948 | ||||||||
19.05 | 33.33 | 25.4 | WDBRG-SRB122116 | ||||||||
19.05 | 33.33 | 31.75 | WDBRG-SRB122120 | ||||||||
19.05 | 33.33 | 38.1 | WDBRG-SRB122124 | ||||||||
19.05 | 33.33 | 44.45 | WDBRG-SRB122128 | ||||||||
19.05 | 33.33 | 47.6 | WDBRG-SRB122130 | ||||||||
19.05 | 33.33 | 50.8 | WDBRG-SRB122132 | ||||||||
19.05 | 33.33 | 63.5 | WDBRG-SRB122140 | ||||||||
19.05 | 36.51 | 19.05 | WDBRG-SRB122312 | ||||||||
19.05 | 36.51 | 25.4 | WDBRG-SRB122316 | ||||||||
19.05 | 36.51 | 31.75 | WDBRG-SRB122320 | ||||||||
19.05 | 36.51 | 38.1 | WDBRG-SRB122324 | ||||||||
19.05 | 36.51 | 44.45 | WDBRG-SRB122328 | ||||||||
19.05 | 36.51 | 47.6 | WDBRG-SRB122330 | ||||||||
19.05 | 36.51 | 50.8 | WDBRG-SRB122332 | ||||||||
19.05 | 36.51 | 57.15 | WDBRG-SRB122336 | ||||||||
19.05 | 36.51 | 63.5 | WDBRG-SRB122340 | ||||||||
19.05 | 36.51 | 69.82 | WDBRG-SRB122344 | ||||||||
19.05 | 36.51 | 76.2 | WDBRG-SRB122348 | ||||||||
19.05 | 39.675 | 38.1 | WDBRG-SRB122524 | ||||||||
19.05 | 39.675 | 44.45 | WDBRG-SRB122528 | ||||||||
19.05 | 39.675 | 50.8 | WDBRG-SRB122532 | ||||||||
19.05 | 39.675 | 57.15 | WDBRG-SRB122536 | ||||||||
19.05 | 39.675 | 63.5 | WDBRG-SRB122540 | ||||||||
19.05 | 39.675 | 76.2 | WDBRG-SRB122548 | ||||||||
20.63 | 34.925 | 25.4 | WDBRG-SRB132216 | ||||||||
20.63 | 34.925 | 31.75 | WDBRG-SRB132220 | ||||||||
20.63 | 34.925 | 38.1 | WDBRG-SRB132224 | ||||||||
20.63 | 34.925 | 44.45 | WDBRG-SRB132228 | ||||||||
20.63 | 34.925 | 50.8 | WDBRG-SRB132232 | ||||||||
20.63 | 34.925 | 63.5 | WDBRG-SRB132240 | ||||||||
22.225 | 33.33 | 25.4 | WDBRG-SRB142116 | ||||||||
22.225 | 33.33 | 31.75 | WDBRG-SRB142120 | ||||||||
22.225 | 33.33 | 38.1 | WDBRG-SRB142124 | ||||||||
22.225 | 33.33 | 44.45 | WDBRG-SRB142128 | ||||||||
22.225 | 33.33 | 50.8 | WDBRG-SRB142132 | ||||||||
22.225 | 33.33 | 63.5 | WDBRG-SRB142140 | ||||||||
22.225 | 33.33 | 76.2 | WDBRG-SRB142148 | ||||||||
22.225 | 36.51 | 25.4 | WDBRG-SRB142136 | ||||||||
22.225 | 36.51 | 31.75 | WDBRG-SRB142320 | ||||||||
22.225 | 36.51 | 38.1 | WDBRG-SRB142324 | ||||||||
22.225 | 36.51 | 44.45 | WDBRG-SRB142328 | ||||||||
22.225 | 36.51 | 47.6 | WDBRG-SRB142330 | ||||||||
22.225 | 36.51 | 50.8 | WDBRG-SRB142332 | ||||||||
22.225 | 36.51 | 63.5 | WDBRG-SRB142340 | ||||||||
22.225 | 36.51 | 76.2 | WDBRG-SRB142348 | ||||||||
22.225 | 39.68 | 25.4 | WDBRG-SRB142516 | ||||||||
22.225 | 39.68 | 31.75 | WDBRG-SRB142520 | ||||||||
22.225 | 39.68 | 38.1 | WDBRG-SRB142524 | ||||||||
22.225 | 39.68 | 44.45 | WDBRG-SRB142528 | ||||||||
22.225 | 39.68 | 50.8 | WDBRG-SRB142532 | ||||||||
22.225 | 39.68 | 63.5 | WDBRG-SRB142540 | ||||||||
22.225 | 39.68 | 76.2 | WDBRG-SRB142548 | ||||||||
25.4 | 36.51 | 25.4 | WDBRG-SRB162316 | ||||||||
25.4 | 36.51 | 31.75 | WDBRG-SRB162320 | ||||||||
25.4 | 36.51 | 38.1 | WDBRG-SRB162324 | ||||||||
25.4 | 36.51 | 44.45 | WDBRG-SRB162328 | ||||||||
25.4 | 36.51 | 50.8 | WDBRG-SRB162332 | ||||||||
25.4 | 36.51 | 57.15 | WDBRG-SRB162336 | ||||||||
25.4 | 36.51 | 63.5 | WDBRG-SRB162340 | ||||||||
25.4 | 36.51 | 69.85 | WDBRG-SRB162344 | ||||||||
25.4 | 36.51 | 76.2 | WDBRG-SRB162348 | ||||||||
25.4 | 39.675 | 25.4 | WDBRG-SRB162516 | ||||||||
25.4 | 39.675 | 28.575 | WDBRG-SRB162518 | ||||||||
25.4 | 39.675 | 31.75 | WDBRG-SRB162520 | ||||||||
25.4 | 39.675 | 38.1 | WDBRG-SRB162524 | ||||||||
25.4 | 39.675 | 44.45 | WDBRG-SRB162528 | ||||||||
25.4 | 39.675 | 50.8 | WDBRG-SRB162532 | ||||||||
25.4 | 39.675 | 57.15 | WDBRG-SRB162536 | ||||||||
25.4 | 39.675 | 63.5 | WDBRG-SRB162540 | ||||||||
25.4 | 39.675 | 69.85 | WDBRG-SRB162544 | ||||||||
25.4 | 39.675 | 76.2 | WDBRG-SRB162548 | ||||||||
25.4 | 44.45 | 25.4 | WDBRG-SRB162816 | ||||||||
25.4 | 44.45 | 38.1 | WDBRG-SRB162824 | ||||||||
25.4 | 44.45 | 44.45 | WDBRG-SRB162828 | ||||||||
25.4 | 44.45 | 50.8 | WDBRG-SRB162832 | ||||||||
25.4 | 44.45 | 63.5 | WDBRG-SRB162840 | ||||||||
25.4 | 44.45 | 76.2 | WDBRG-SRB162848 | ||||||||
25.4 | 44.45 | 88.9 | WDBRG-SRB162856 | ||||||||
25.4 | 44.45 | 101.6 | WDBRG-SRB162864 | ||||||||
25.4 | 49.21 | 25.4 | WDBRG-SRB163116 | ||||||||
25.4 | 49.21 | 38.1 | WDBRG-SRB163124 | ||||||||
25.4 | 49.21 | 50.8 | WDBRG-SRB163132 | ||||||||
25.4 | 49.21 | 63.5 | WDBRG-SRB163140 | ||||||||
25.4 | 49.21 | 76.2 | WDBRG-SRB163148 | ||||||||
25.4 | 49.21 | 88.9 | WDBRG-SRB163156 | ||||||||
25.4 | 49.21 | 101.6 | WDBRG-SRB163164 | ||||||||
25.4 | 50.8 | 50.8 | WDBRG-SRB163232 |
